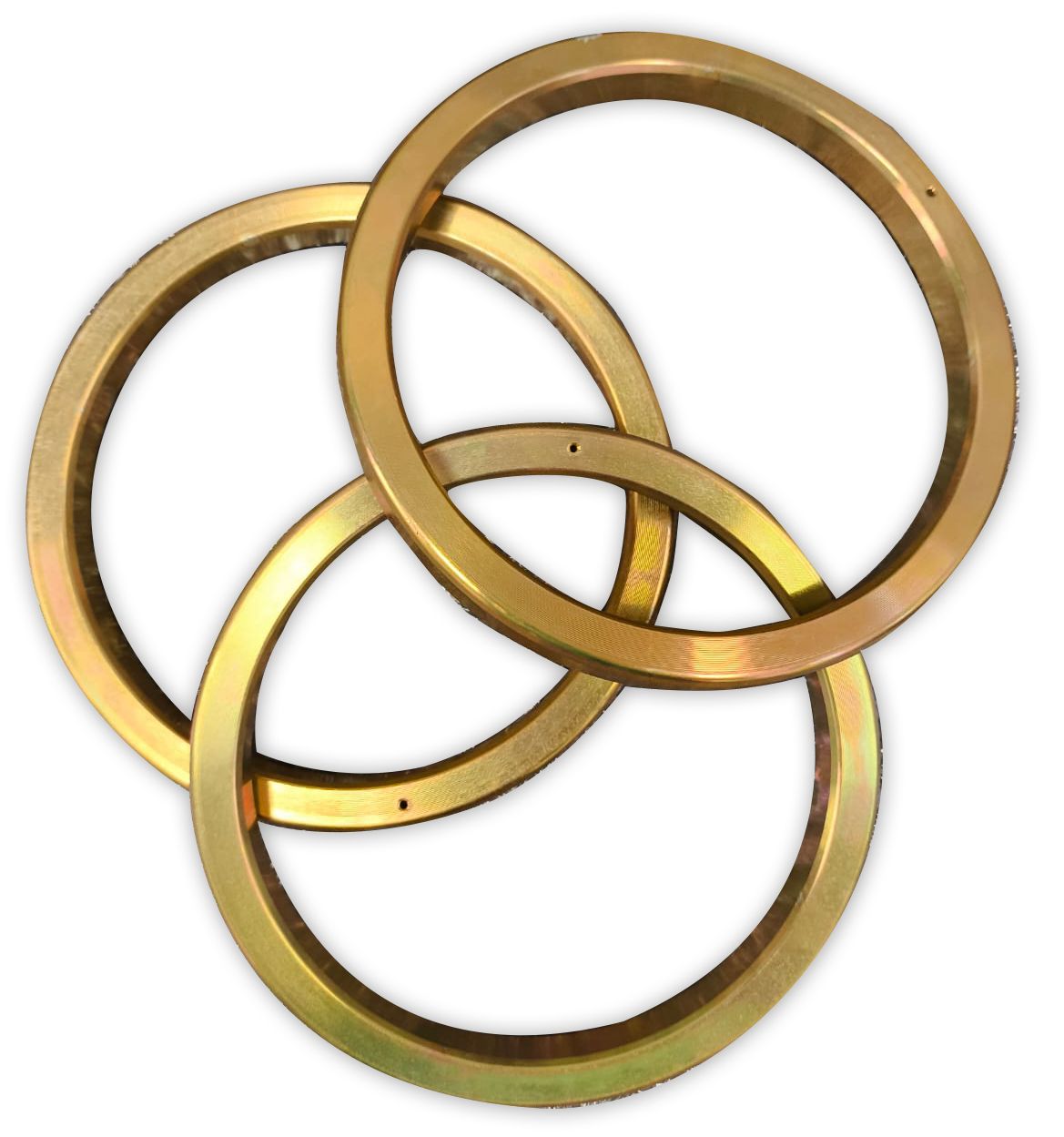

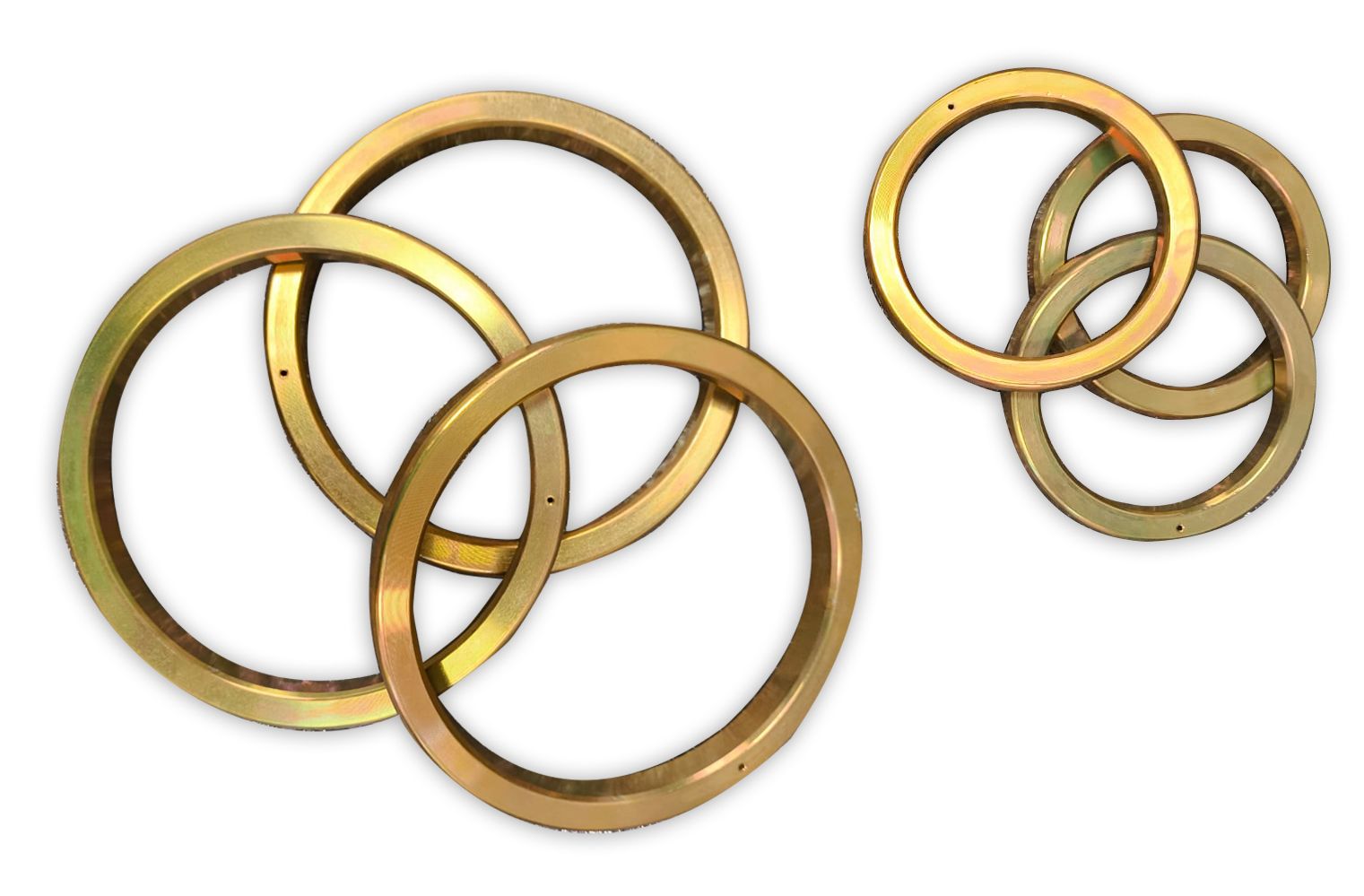

ANILLOS BX
Los anillos BX se utilizan para trabajos a alta presión (hasta 20000 psi). Su estructura permite balancear la misma, garantizando máxima seguridad en dichas condiciones de trabajo.
Los anillos BX se fabrican bajo normas ASME B16.20 y API 6A. Se utiliza acero al carbono con posterior recubrimiento de zincado dorate.
Especificaciones técnicas
|
Material
|
Dureza máxima Brinell HB
|
Dureza máxima Rockwell HRB
|
|---|---|---|
|
Acero dulce
|
90
|
56
|
|
Acero al carbono
|
120
|
68
|
Para bridas según API spec 6A modelo 6BX.
|
Diámetro nominal de cañería
|
Número del anillo en las diferentes series
|
|||||
|---|---|---|---|---|---|---|
|
|
2000
|
3000
|
5000
|
10000
|
15000
|
20000
|
|
1 11/16”
|
---
|
---
|
---
|
BX150
|
BX150
|
---
|
|
1 13/16”
|
---
|
---
|
---
|
BX151
|
BX151
|
BX151
|
|
2 21/16”
|
---
|
---
|
---
|
BX152
|
BX152
|
BX152
|
|
2 9/16”
|
---
|
---
|
---
|
BX153
|
BX153
|
BX153
|
|
3 1/16”
|
---
|
---
|
---
|
BX154
|
BX154
|
BX154
|
|
4 1/16”
|
---
|
---
|
---
|
BX155
|
BX155
|
BX155
|
|
5 1/8”
|
---
|
---
|
---
|
BX169
|
BX169
|
---
|
|
7 1/16”
|
---
|
---
|
---
|
BX156
|
BX156
|
BX156
|
|
9”
|
---
|
---
|
---
|
BX157
|
BX157
|
BX157
|
|
11”
|
---
|
---
|
---
|
BX158
|
BX158
|
BX158
|
|
13 5/8”
|
---
|
---
|
BX160
|
BX159
|
BX159
|
BX159
|
|
16 3/4”
|
---
|
---
|
BX162
|
BX162
|
---
|
---
|
|
18 3/4”
|
---
|
---
|
BX163
|
BX164
|
BX164
|
---
|
|
21 1/4”
|
---
|
---
|
BX165
|
BX165
|
---
|
---
|
|
26 3/4”
|
BX167
|
BX168
|
---
|
---
|
---
|
---
|
|
26 3/4”
|
BX303
|
BX303
|
---
|
---
|
---
|
---
|
